    Phenolic Wheel Heat Resistant Casters With Brake 3 Inch

    Ask Lasest Price
    Brand Name : Ecastor
    Model Number : 1222-75
    Certification : ISO9001
    Price : Negotiation
    Payment Terms : L/C, T/T
    Supply Ability : 500000 Piece/Pieces per Month
    • Product Details
    • Company Profile

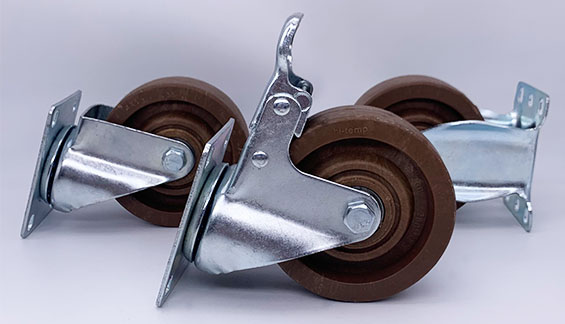

    Phenolic Wheel Heat Resistant Casters With Brake 3 Inch

    Phenolic Wheel High Temp Resistant Swivel Plate Caster 3 Inch

    1. Description:

    Wheel Material: Phenolic wheels are manufactured by impregnating and impregnating fibers with phenolic resin and molded under high pressure and high temperature. The resulting hard, high-temperature wheels are very suitable for carrying heavy loads. They are especially suitable for carrying static heavy loads for long periods of time without causing any permanent deformation of the wheels. However, it should be noted that if you use it on a rough surface or hit another object, the phenolic wheel may break.


    Bearings: The steel ball bearings in standard casters cannot support well at high temperatures. Manufacturers usually use stainless steel, which has a higher rating. Another option is to use a bronze sleeve in the wheel hole instead of the ball bearing; it has a higher temperature rating, but it will not roll. Bearings suitable for high temperatures must be selected for operation in high temperature environments.


    2. Specification


    Product Name3 Inch Phenolic Wheel High Temp Resistant Swivel Plate Caster with Brake
    Wheel Diameter (mm)75
    Wheel Width (mm)32
    Load Capacity(kg)100
    Height (mm)100
    Plate Size (mm)95x65
    Hole Spacing (mm)75x45
    Hole Size (mm)8.5
    Tread MaterialPhenolic
    Max Temperature300 Degrees Celsius
    Mounting TypeSwivel Plate with Brake
    Code1222-75
    BrakeYes

    Pallet Truck Steer Wheel


    3, Other Size Products as Bellow:
